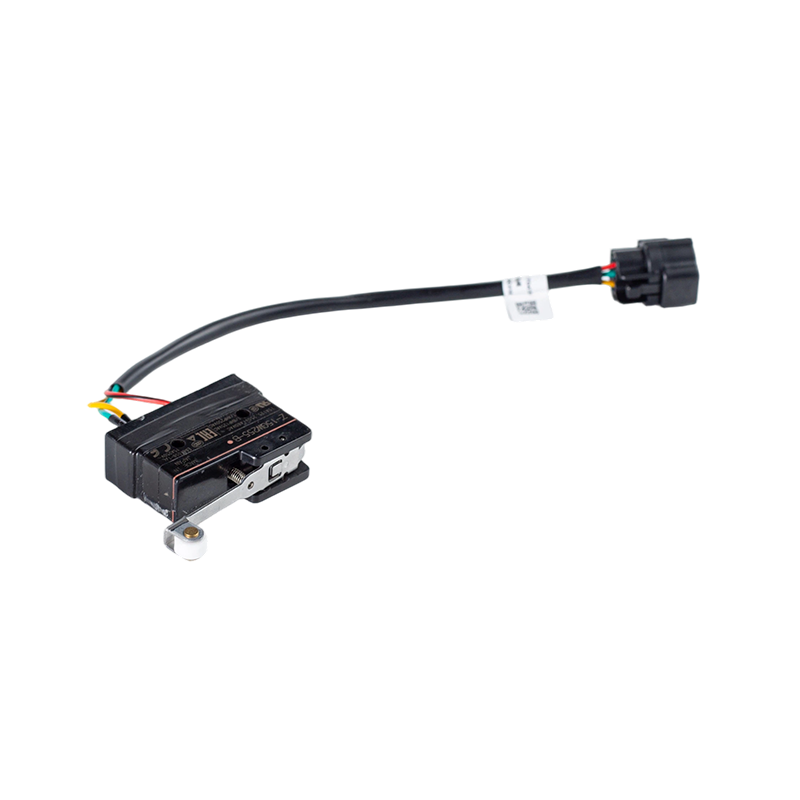

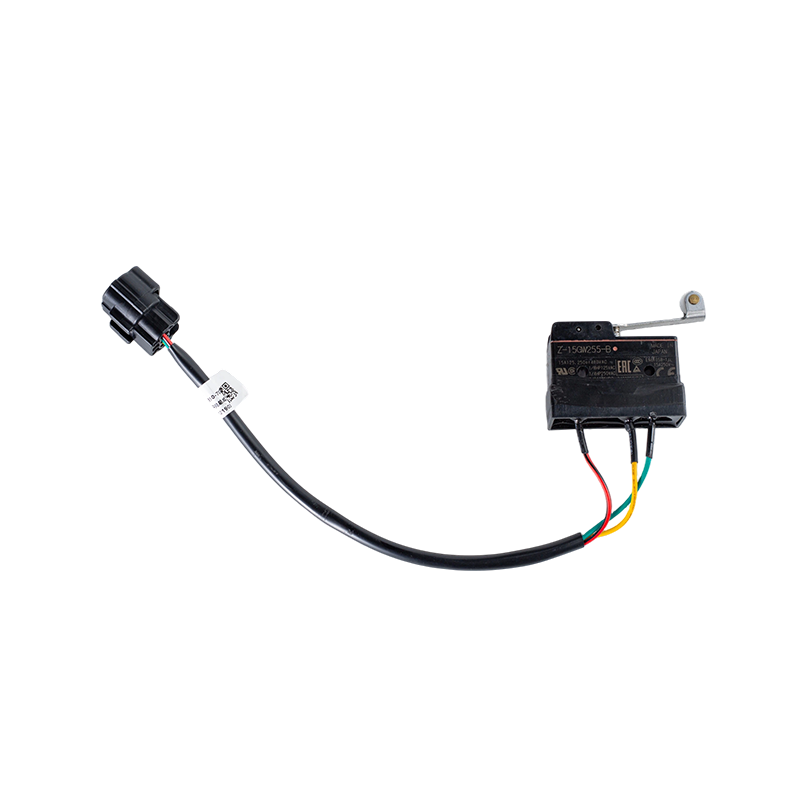

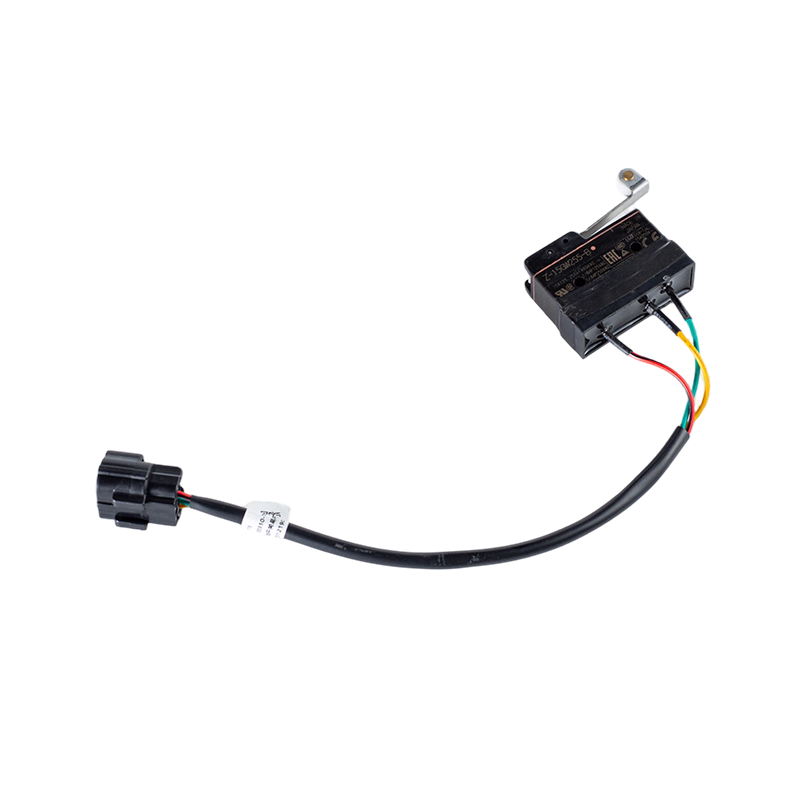

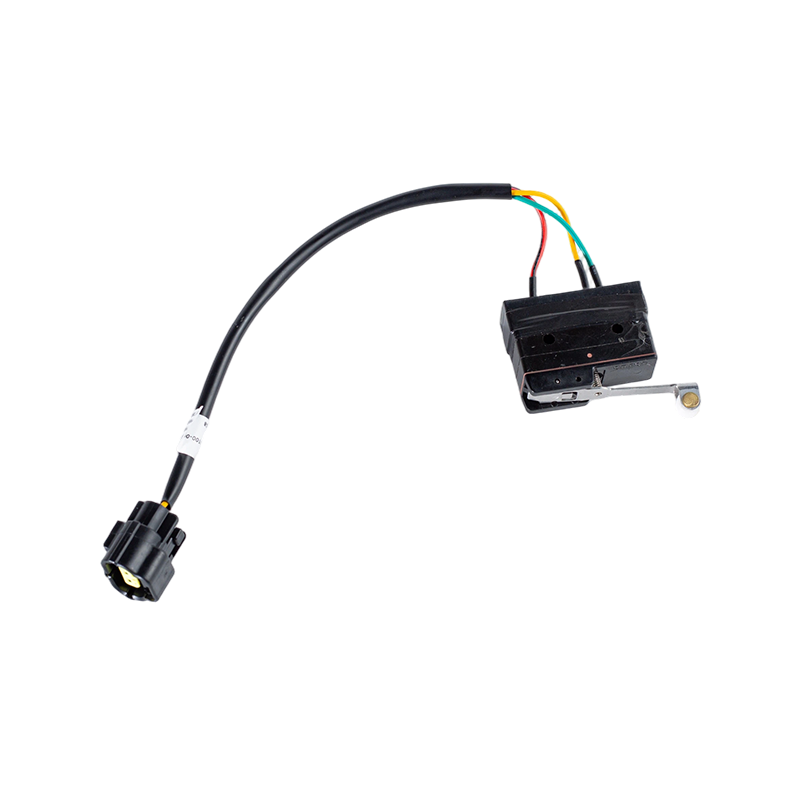

Ultra Sensitive Low Force Forklift Hydraulic System Limit Micro Switch

This microswitch is specifically designed for forklift multi-way hydraulic valve systems. With its key advantages of light-touch sensitivity and ultra-high positioning accuracy, it delivers smooth and precise hydraulic signal feedback through an optimized precision mechanical structure, making it perfectly suited for high-precision forklift hydraulic control applications.
Key Advantages
1. Ultra-light, sensitive trigger calibration. With a maximum actuation force of just 1.57 N and a minimum return force of 0.14 N, the switch activates signals rapidly with minimal force, enabling precise hydraulic valve signal switching within a short travel distance for a light and smooth operating feel.
2. Actuation position tolerance is strictly controlled within ±0.4 mm, ensuring consistent trigger points every time. Signal output remains stable and drift-free even during long-term, high-frequency use, guaranteeing consistent hydraulic valve operation.
3. Robust anti-interference and anti-mis-trigger design. A standard response distance of 0.5 mm effectively filters out false signals caused by vehicle vibrations, perfectly balancing trigger sensitivity with operational stability against interference.
4. Long-lasting durability for high-frequency cycling. Designed for prolonged, high-frequency on-off cycling, the contacts are wear-resistant and maintain performance over time, ensuring stable and reliable operation even during continuous material handling, with a long service life.
5. IP65-rated, wide-temperature industrial-grade protection. Dustproof, waterproof, and oil-resistant, with reinforced insulation to prevent electric shock. Operates stably across an ultra-wide temperature range of -30°C to +70°C, functioning normally in harsh environments such as cold storage facilities and factory areas with oil, grease, and dust.
Customized designs are also available.
